Transform Point Clouds

Function Description

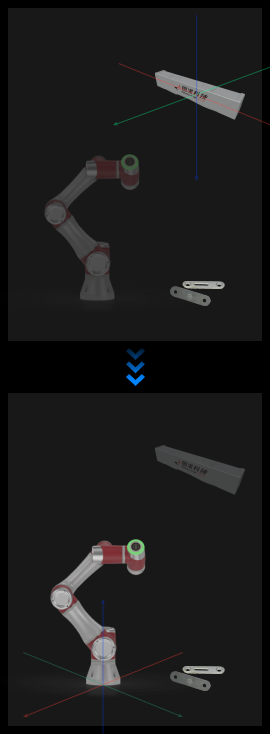

This step can transform point clouds from one coordinate system to another, or perform position transformation within its own coordinate system based on reference poses.

TransformPointClouds

Use Cases

This step is generally used for transformation between camera coordinate system and robot coordinate system for point clouds.

Inputs

  • Point Cloud (Required): Original point cloud to be transformed.

Outputs

  • Point Cloud: Transformed point cloud.

Parameters

Transformation Settings

  • Transformation Type

    Sets the transformation method for point clouds.

    • CameraToRobot: Transforms point clouds from camera coordinate system to robot coordinate system.

    • RobotToCamera: Transforms point clouds from robot coordinate system to camera coordinate system.

    • AllWithFirst: Transforms the original point cloud to the coordinate system of the reference pose based on the first pose in the input reference pose list.

    • FirstWithAll: Transforms the first point cloud in the original point cloud list to the coordinate systems of each reference pose respectively based on all poses in the input reference pose list.

    • OneWithOne: One-to-one transformation. Each point cloud in the original point cloud list is sequentially transformed to the coordinate system of the corresponding pose in the reference pose list (requires the number of input point clouds to equal the number of reference poses).

    • AffineTransform: Transforms point clouds through affine transformation matrix. You can use the “Convert PoseList to Matrix4D” step to convert poselist to matrix4D, and then input it to the Matrix4D input port of this step.
